What is a circuit breaker? A homeowner’s guide
A circuit breaker is an automatic safety switch that stops the flow of electricity through a circuit when a fault occurs, such as an overload or short circuit. Think of it as your home’s first line of defence against electrical fires and damaged wiring. Every Australian home built or rewired in recent decades relies on these devices inside the switchboard to keep circuits safe. Understanding how they work, what types exist, and what to do when one trips gives you real confidence when something goes wrong at home.
What is a circuit breaker and how does it protect your home?
A circuit breaker is defined as a resettable switching device that automatically interrupts electrical current when it detects a fault. Unlike a fuse, which burns out and must be replaced, a circuit breaker can be reset and used again. This makes it far more practical for residential use, where faults can occur from something as simple as running too many appliances on one circuit.
The circuit breaker function covers three key roles: protecting wiring from overheating, preventing fires caused by short circuits, and allowing manual isolation of a circuit for maintenance. Every circuit in your home, from the kitchen to the laundry, connects back to a dedicated breaker in the switchboard. When that breaker detects a problem, it trips and cuts power to that circuit only, leaving the rest of your home unaffected.
Modern Australian homes use breakers that comply with AS/NZS 3000, the national wiring standard. This means the devices installed in your switchboard are rated to handle specific loads and fault conditions. Knowing this helps you understand why you should never replace a breaker with one that has a higher amp rating than the original.
How do circuit breakers work to protect your home’s electrical circuits?

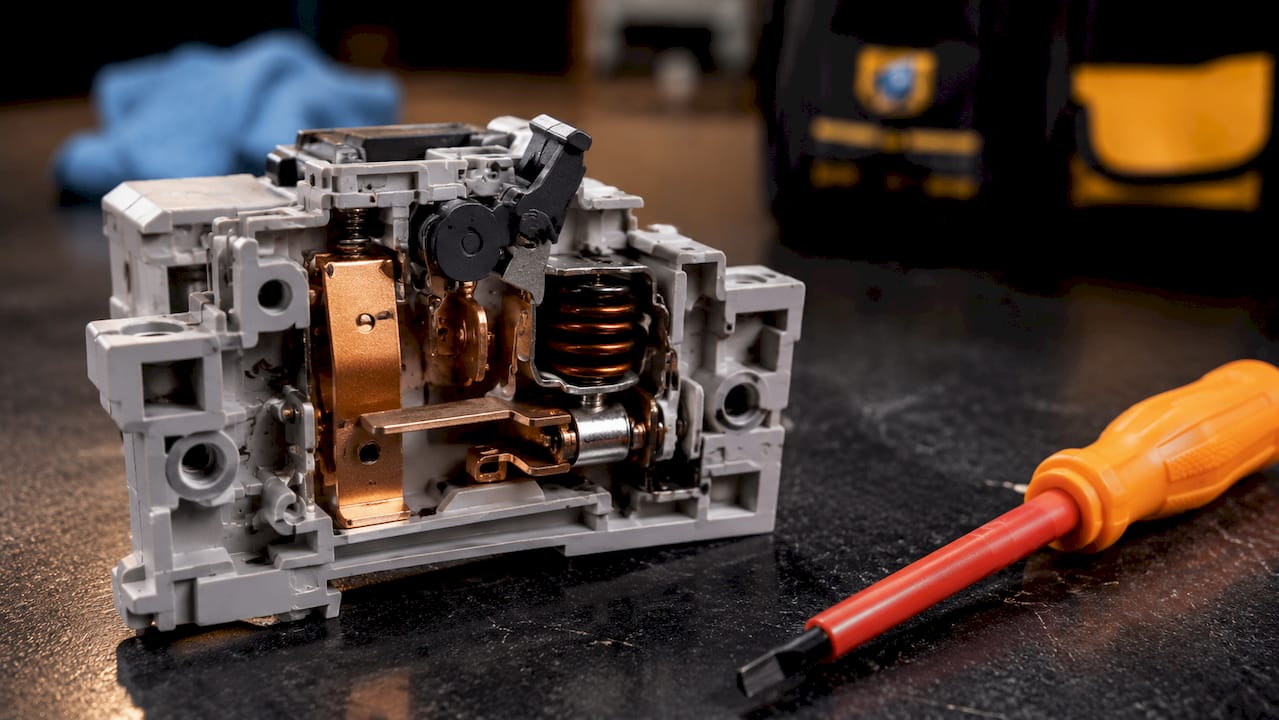

Circuit breakers use two distinct mechanisms to detect faults, and each one responds to a different type of problem. Thermal and magnetic mechanisms work together inside a single device to cover both slow overloads and sudden short circuits.
The thermal mechanism
The thermal mechanism uses a bimetallic strip, which is two metals bonded together that expand at different rates when heated. When too much current flows through the circuit, the strip heats up, bends, and eventually triggers the trip mechanism. This process takes seconds to minutes depending on how severe the overload is. A good example is running a heater, a kettle, and a hair dryer on the same circuit at the same time.
The magnetic mechanism
The magnetic mechanism responds to sudden, severe faults like short circuits. A coil inside the breaker generates a magnetic field proportional to the current flowing through it. During a short circuit, current spikes dramatically and the magnetic field pulls a trip lever almost instantly. Magnetic mechanisms react in less than 10 milliseconds, which is fast enough to prevent serious damage to wiring and connected appliances.
Arc quenching and internal safety
Inside every circuit breaker, arc chutes stretch and cool the electric arc that forms when contacts separate. Internal arc chutes prevent contact welding and stop unsafe conditions from developing inside the device itself. Without this feature, the contacts could fuse together and the breaker would fail to open during future faults.
Pro Tip: If you hear a loud crack or buzzing sound from your switchboard when a breaker trips, that is the arc quenching process at work. A single loud trip is normal. Repeated loud noises from the same breaker suggest a deeper fault worth investigating.
- Thermal trips protect against sustained overloads from too many appliances
- Magnetic trips protect against sudden short circuits in wiring or appliances
- Arc chutes prevent internal damage during the trip process
- The resettable design means no replacement parts are needed after a normal trip

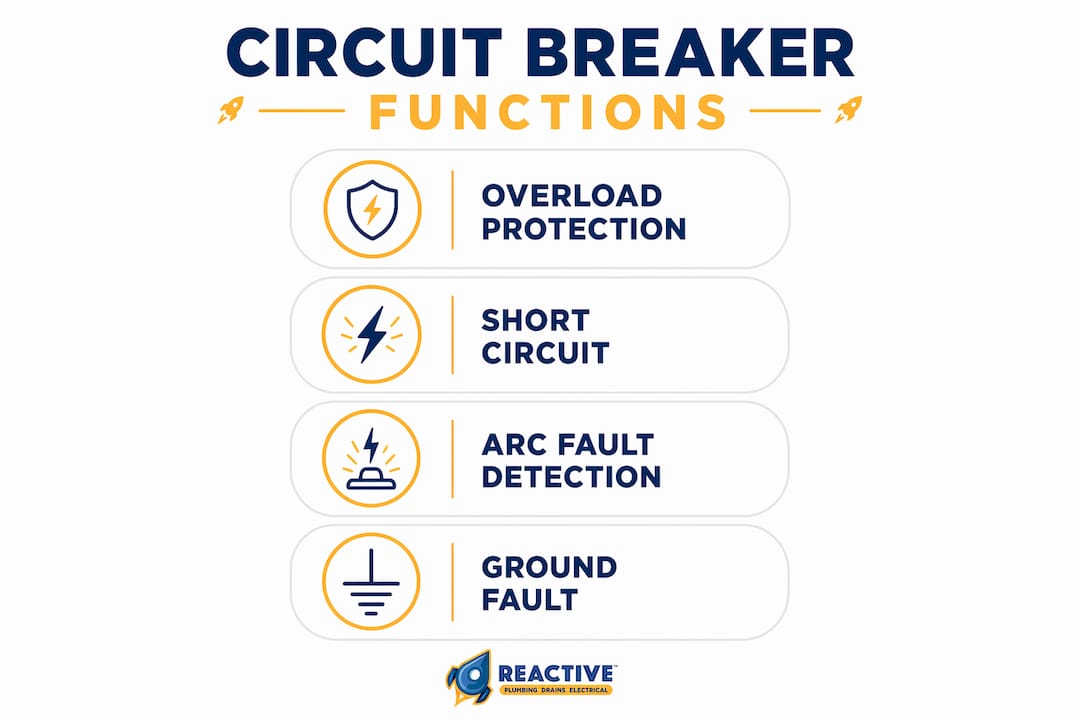

What types of circuit breakers are found in Australian homes?
Several types of circuit breakers serve different protective functions in a residential switchboard. Knowing which type does what helps you understand your own switchboard and ask the right questions when speaking with an electrician.
Miniature Circuit Breakers (MCBs)
MCBs are the standard breakers found in most Australian homes. They protect against overloads and short circuits using the thermal and magnetic mechanisms described above. Each MCB is rated for a specific current, typically 10A, 16A, 20A, or 32A, depending on the circuit it protects. A 10A MCB typically covers lighting circuits, while a 32A MCB handles a large appliance like an electric oven.
Arc-Fault Circuit Interrupters (AFCIs)
AFCI breakers detect arc faults in wiring, which are a leading cause of house fires. An arc fault occurs when electricity jumps across a gap in damaged or loose wiring, generating intense heat without triggering a standard MCB. AFCIs are increasingly specified in new Australian residential builds, particularly for bedroom circuits where wiring damage from furniture or staples is more common.
Ground-Fault Circuit Interrupters (GFCIs)
GFCIs, also known as residual current devices (RCDs) in Australian terminology, detect current imbalances between the active and neutral wires. GFCIs prevent electrical shock by tripping within milliseconds when current leaks to earth, such as when a person touches a live wire. Australian standards require RCDs on all power and lighting circuits in new homes and renovations.
| Type | Protection offered | Typical location |
|---|---|---|
| MCB | Overload and short circuit | All general circuits |
| AFCI | Arc faults in wiring | Bedrooms, living areas |
| GFCI / RCD | Earth leakage and shock | Bathrooms, kitchens, outdoors |
| Isolator switch | Manual disconnection only | Air conditioners, hot water systems |
An isolator switch is worth mentioning here because homeowners often confuse it with a circuit breaker. An isolator provides manual disconnection only and does not automatically protect against faults. You will often see isolators next to air conditioning units or hot water systems. They are a maintenance tool, not a safety device.
Circuit breaker vs fuse vs isolator: what homeowners need to know
The differences between these three devices matter for both safety and maintenance. Each one has a distinct role, and using the wrong one creates real risk.
Circuit breaker. A resettable device that automatically trips during overloads and short circuits, then resets with a simple toggle. No parts need replacing after a normal trip. Modern Australian switchboards use MCBs and RCDs as standard.
Fuse. A single-use device containing a wire that melts when current exceeds its rating. Once blown, the fuse must be physically replaced. Older homes may still use fuse systems, but upgrading to circuit breakers improves safety and makes maintenance far simpler.
Isolator switch. A manual switch that disconnects a circuit or appliance for safe maintenance work. It provides no automatic fault protection whatsoever. An isolator next to your hot water system lets an electrician safely work on the unit, but it will not trip if the wiring develops a fault.
Upgrading from a fuse board to a modern switchboard with circuit breakers and RCDs is one of the most worthwhile electrical improvements an older home can make. Professional assessment is recommended when upgrading from fuses to circuit breakers to align with current Australian safety standards. The team at Reactive Plumbing & Electrical handles switchboard upgrades across Sydney and surrounding regions for exactly this reason.
Pro Tip: Never replace a blown fuse with a higher-rated fuse or a piece of wire. This removes the only protection that circuit has and creates a serious fire risk. If fuses are blowing repeatedly, the underlying fault needs professional diagnosis.
What to do when a circuit breaker trips: troubleshooting tips
A tripped breaker is a diagnostic signal, not a sign that the device is worn out. Circuit breakers are designed to last many years, and frequent tripping signals genuine electrical faults rather than a failing breaker. Treating a trip as an inconvenience and simply resetting it without investigation is the most common mistake homeowners make.
How to reset a tripped breaker correctly
When a breaker trips, the handle moves to a middle position between ON and OFF. Many homeowners try to push it straight to ON and wonder why it will not stay. The handle must be toggled fully to OFF before switching back to ON, because this resets the internal latch mechanism. Skipping this step is the most common reason a reset attempt fails.
Common causes of a tripped breaker
- Overload. Too many appliances drawing power from one circuit. Unplug some devices before resetting.
- Short circuit. A fault inside an appliance or in the wiring itself. Check for damaged cords or burning smells before resetting.
- Earth leakage. A fault to earth detected by an RCD. This can indicate moisture in an appliance or damaged wiring.
- Nuisance tripping. An RCD that trips without an obvious cause may indicate ageing wiring or a developing fault elsewhere.
When to call a licensed electrician
Some situations go beyond a simple reset. Contact a professional if you notice any of the following:
- The breaker trips again immediately after resetting
- You can smell burning or see scorch marks near the switchboard
- The breaker feels warm or hot to the touch
- Unusual sounds from the breaker such as buzzing or crackling persist after resetting
- The same breaker trips repeatedly over several days
Forcing a breaker to stay ON when it keeps tripping is dangerous. Forcing a breaker ON without proper reset can cause wiring damage and fire hazards. If a breaker will not stay on after a correct reset, the fault is still present and needs professional diagnosis.
Pro Tip: Label every circuit in your switchboard clearly. Knowing that the tripped breaker covers the kitchen rather than guessing saves time and helps you identify patterns if one circuit trips repeatedly.
Regular electrical maintenance checks by a licensed electrician catch developing faults before they become emergencies. An electrical safety check is particularly worthwhile for homes over 20 years old or those that have never had a formal inspection.
Key takeaways
A circuit breaker is a resettable safety device that automatically interrupts current during faults, and understanding how it works helps you respond safely and know when to call a professional.
| Point | Details |
|---|---|
| Circuit breaker definition | An automatic, resettable switch that stops current flow during overloads and short circuits. |
| Two protective mechanisms | Thermal strips handle slow overloads; magnetic coils react to short circuits in under 10 milliseconds. |
| Three main types | MCBs cover general circuits; AFCIs target arc faults; GFCIs and RCDs prevent electric shock. |
| Correct reset procedure | Toggle the handle fully to OFF before switching ON to reset the internal latch properly. |
| When to call a professional | Repeated trips, burning smells, warm breakers, or unusual sounds all require licensed diagnosis. |
What I have learned after years of seeing switchboards in Australian homes
The most common misconception I encounter is that a tripping breaker is a faulty breaker. Homeowners call us expecting to replace the device, and nine times out of ten the breaker is doing exactly what it should. The fault is in the circuit, not the switch. That misunderstanding leads people to either ignore the trip or force the breaker back on, both of which carry real risk.
The second thing I have seen cause problems is mismatched breakers. When a previous owner or unlicensed tradie has swapped in a breaker with a higher amp rating to stop nuisance trips, the wiring behind it is now unprotected. Mismatched breakers may fail during major faults, and the wiring can overheat long before the breaker trips. This is not a theoretical risk. We have seen it cause real damage in homes across Sydney.
My honest advice for any homeowner with a switchboard that still uses ceramic fuses is to get a professional assessment before anything else fails. The process of modernising an older panel is straightforward when done properly, and the safety improvement is significant. Do not wait for a fault to force the decision.
— Brent
Reactive Plumbing & Electrical: expert circuit breaker and switchboard services
If your breaker keeps tripping, your switchboard still uses fuses, or you are planning a renovation that requires electrical upgrades, Reactive Plumbing & Electrical is ready to help. We work with licensed electricians across Sydney, Newcastle, Wollongong, Brisbane, Ipswich, and the Gold Coast to deliver safe, code-compliant electrical work for residential clients.
Our team handles everything from circuit breaker repairs and fault diagnosis to full switchboard upgrades that bring older homes up to current Australian standards. We carry the right equipment and the right licences to get the job done safely the first time. Call Reactive Plumbing & Electrical today to book an inspection or get a quote for your electrical upgrade.
FAQ
What does a circuit breaker do exactly?
A circuit breaker automatically stops the flow of electricity through a circuit when it detects an overload or short circuit, protecting your wiring and appliances from damage.
Why does my circuit breaker keep tripping?
Repeated tripping signals a genuine fault such as an overloaded circuit, a short circuit in an appliance, or earth leakage in the wiring. A licensed electrician should diagnose the cause before you continue resetting it.
What is the difference between a circuit breaker and a fuse?
A circuit breaker is resettable after a trip, while a fuse contains a wire that melts and must be physically replaced. Circuit breakers are the standard in modern Australian switchboards because they are safer and easier to maintain.
How do I reset a tripped circuit breaker?
Toggle the handle fully to the OFF position first, then switch it back to ON. Skipping the full OFF step is the most common reason a reset attempt fails, as it does not reset the internal latch.
When should I call an electrician for a circuit breaker problem?
Call a licensed electrician if the breaker trips again immediately after resetting, if you smell burning near the switchboard, if the breaker feels warm, or if you hear buzzing or crackling sounds from the switchboard.
